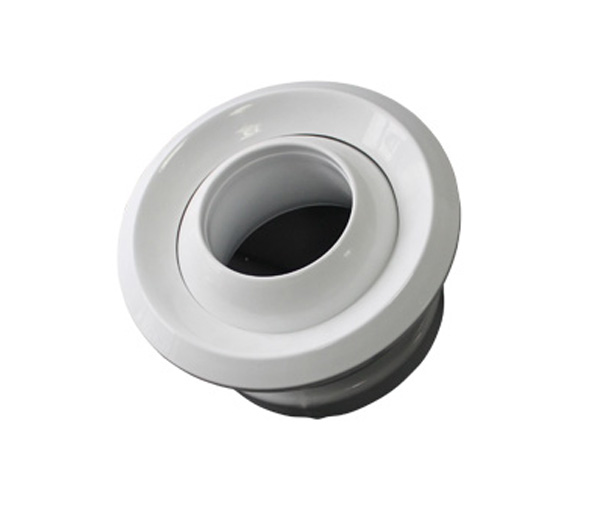

Features:
- 1. The ball jet diffuser is mainly used in the area where the A/C outlets are far
away from the people moving around. It is better to install ball spouts to supply
side air.
- 2. On the condition that air supply and the indoor temperature are
changing, the supply airflow will be up (cold air) and down (hot air).
- 3. Our ball jet diffuser is quite good at the noise control because the theory of
the air dynamics is adopted in its structure design.
- 4. Furthermore due to its unique excellent appearance, it can be used in
the superior places such as concert halls, airports, theatres and museum etc.
- 5. The way of supplying air can be manually or electrically adjusted within
±30 degrees.

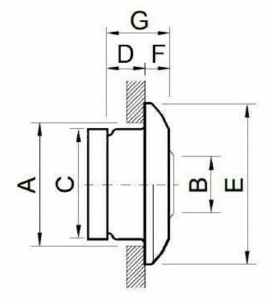

Specification (mm) |
A |
B |
C |
D |
E |
F |
G |
100 |
101 |
48 |
100 |
42 |
148 |
22 |
64 |
125 |
126 |
60 |
123 |
45 |
170 |
22 |
67 |
160 |
159 |
76 |
158 |
57 |
200 |
23 |
80 |
200 |
203 |
96 |
199 |
88 |
265 |
27 |
115 |
250 |
248 |
127 |
248 |
112 |
309 |
30 |
142 |
315 |
317 |
180 |
313 |
138 |
378 |
30 |
168 |
350 |
349 |
195 |
349 |
170 |
430 |
30 |
200 |
400 |
396 |
220 |
398 |
171 |
466 |
36 |
207 |
450 |
443 |
274 |
448 |
233 |
520 |
41 |
274 |
↑
