Features:

Flexible duct connector is formed through fold repression by using fire-resistant fabric and punching sheet .With this technics, the gas tightness is good, the punching sheet is easy to be shaped, and the installation is convenient. It can replace the old common canvas to save time. You can bend the galvanized sheet into whatever shape you need, and then use the tapping screw or the self-plugging rivet to tight it. Another installation method is spot welding processing.

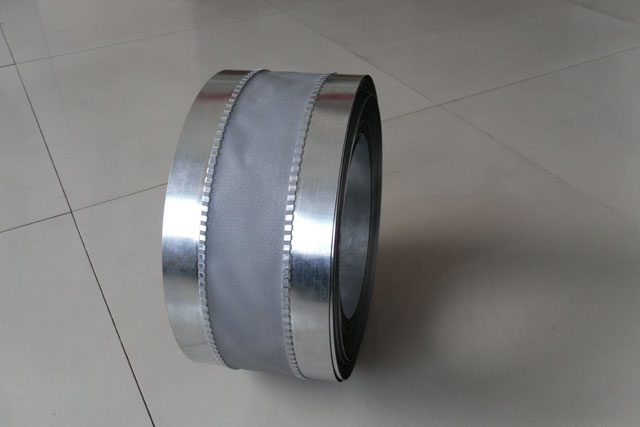

Glass fiber Fabric Duct Connector

• Model: FC2
• Steel: Galvanized, 0.4mm thick
• Fabric: Fire- resistant fiberglass coated silicone
• Color: Grey
• Temperature Range: -30 Deg. C~+280 Deg. C
• Tensile Strength (N): 2300X1860
• Anti-rips intensity (N): 253.6X180.5
• Length per Roll: 25m, 30m, 45m, 50m
